CPK SERIES FLAT-BED HOT-STAMP

LABEL CONVERTING

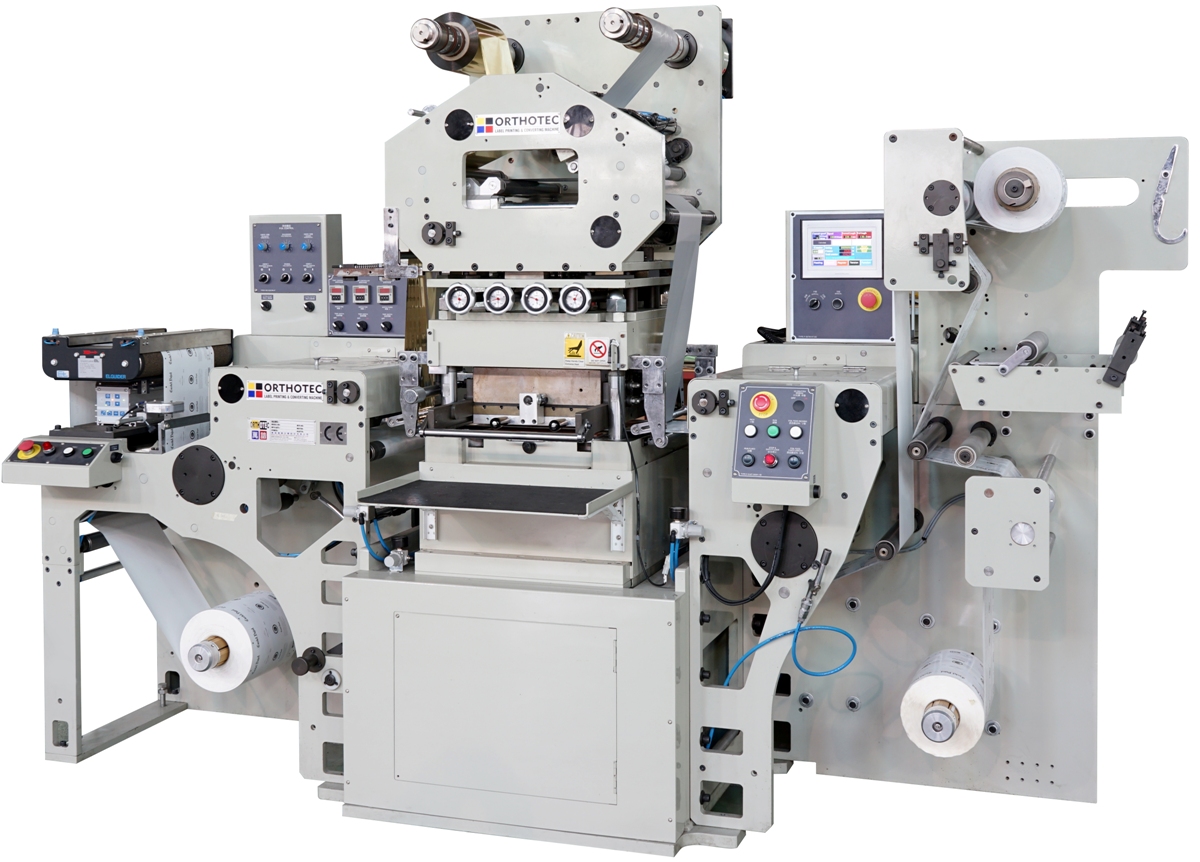

CPK SERIES 400RPM HIGH SPEED FLAT-BED HOT-STAMP MACHINE
ORTHOTEC 30 years experience dedicates in printing technology to achieve high speed & Multifunctional Flat-bed printing press with sturdy & easy operation mechanical construction and precise printing & converting accuracy.

SPECIAL FEATURES:
400 RPM SUPER HIGH SPEED:
400RPM mechanical speed to maximum your production efficiency.
Optional standalone or In-line with flexo printing or semi-rotary offset machine

NON-STOP ADJUSTMENT DESIGN:
Smart Design to adjust angle, along-the-web,across-the-web without stopping production.

ORTHOTEC 40 YEARS ROBUST FLAT-BED MECHANICAL DESIGN:
Strong and long duration mechanical design to reach stable operation for long-term use.
65 Tons High Force Flat-bed Converting:
Having super high force to maintain excellent emboss hot-stamp or hot-stamp at high speed.

FOUR CORNERS PRESSURE ADJUSTMENT KNOBS:
Much easy to adjust and repeat exact hot-stamp pressure
Much reducing make ready time in padding or scratching.

CPK SERIES HIGH SPEED FLAT-BED HOT-STAMP MACHINE
MODEL NAME
CPK3030
CPK4040
PAPER WEB WIDTH
330MM (CPK3030)
430MM (CPK4040)
PAPER FORWARD
300MM (CPK3030)
400MM (CPK4040)
MAX. MECHANICAL SPEED
400RPM, 100 Meters.
MAX. PRINTING AREA
300MM X 300MM (CPK3030)
400MM X 400MM (CPK4040)
STANDARD FUNCTIONS
Unwinder with Webguider, CPK Flat-bed Hot-stamp station, Rewinder with Running Ball waste-off.
OPTIONAL FUNCTIONS
Flexo Varnishing Unit, CPK Flat-bed Hot-stamp Station,  Magnetic Rotary Die-Cut Unit ,
NOTES
  1. Real working speed depend from materials, designs, repeat length, skills of operator and etc..
  2. All specifications are subject to change without notice. Please check with your supplier for exact offer.
  3. Specification and features vary by models, and all images might be illustrative for reference only.
*The above specification is for reference only,  the operational speed and width depends on printing length, operator skill, design, job, and many other factors.
*The specification, picture, functions of machine might change without notice. Kindly check with your distributor or ORTHOTEC
