SRFD SERIES SCREEN PRINTING HOT STAMP MACHINE

LABEL CONVERTING
SRFD -  Screen Printing, Hot-stamp, and Semi-rotary Converting Machine
ORTHOTEC 30 years experience dedicates in printing technology to achieve high speed & Multifunctional Flat-bed printing press with sturdy & easy operation mechanical construction and precise printing & converting accuracy.

SERVO DRIVEN SCREEN PRINTING STATION:
HIGH SPEED SCREEN PRINTING:
By new across-the-web dual sliding shaft to achieve faster speed from traditional 2000rph to 6000rph by this new design

DUAL SLIDING SHAFTS:
Give a much more steady, even and constant pressure of the squeegee

FAST ADJUSTMENT WITHOUT STOP PRINTING:
Along-the-web, Across, the-web, and Angle adjustment without stop machine

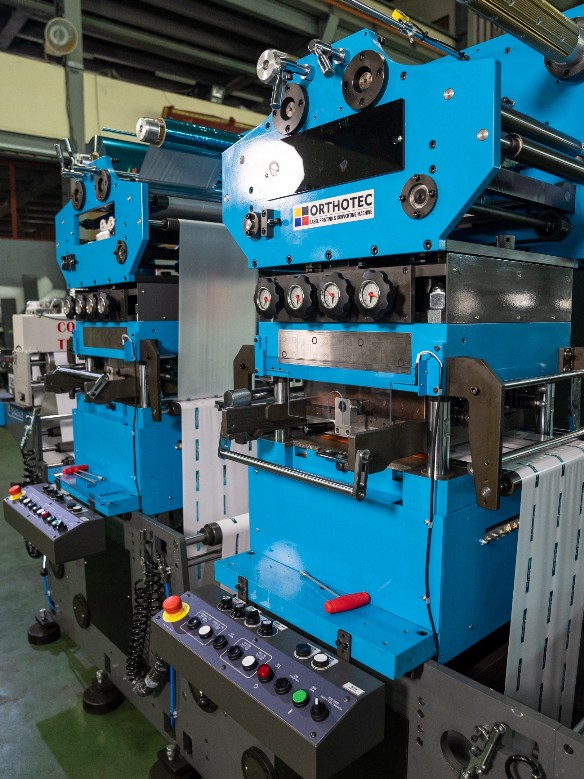

FLAT-BED HOT-STAMP, EMBOSS, AND DIE-CUT STATION:
40 TONS STRONG FORCE FLAT-BED:
Ensure the steady & consistence Die-cut Pressure, and achieve strong & even Hot-stamp and Embossing pressure

EASY SETUP PLATE AND PRESSURE:
Just slide out chase for plate setting. Precise pressure adjustment by four knobs.

REGISTRATION ADJUSTMENT WITHOUT STOP MACHINE
Along-the-web, Across, the-web, and Angle adjustment without stop machine


SEMI-ROTARY DIE-CUT AND FLEXO VARNISH:
REGISTER BALANCE ADJUSTMENT:
Easily adjust distortion by servo technology

REGISTRATION ADJUSTMENT WITHOUT STOP MACHINE
Along-the-web, Across, the-web, Pressure and Angle adjustment without stop machine



High Speed CPK Servo Foil Feeding:
Servo swing for foil feeding and rotable foil feeding head for high speed foil feeding

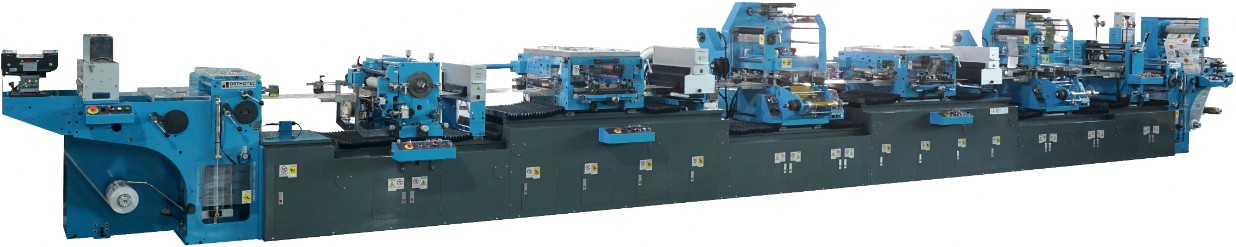

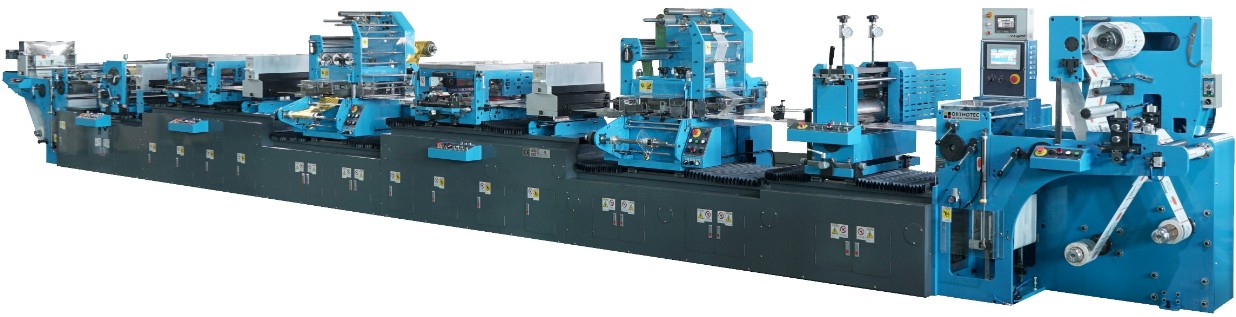

SRFD SCREEN PRINTING AND HOT-STAMP MACHINE
MODEL NAME
SRFD 3030
SRFD 4040
PAPER WEB WIDTH
330MM(SRFD3030)
430MM(SRFD4040)
PAPER FORWARD
300MM(SRFD3030)
400MM(SRFD4040)
MAX. MECHANICAL SPEED
3000MM(Screen Printing Only, depending on printing length)
4500MM(Semi-rotary Motion Only, depending on printing length)
MAX. PRINTING AREA
300MM X 300MM (SRFD3030)
400MM X 400MM (SRFD4040)
OPTIONAL FUNCTIONS
Cold-stamping Unit, Flexo Varnishing Unit, Screen Printing Station, Flat-bed Hot-stamp Station,  K&B Gap Master Magnetic Rotary Die-Cut Unit , Glue side & Back Side Printing Station, Lamination station with scanner, Flat-bed Embossing Station, Magnetic Rotary Die-cut Station,
NOTES
  1. Real working speed depend from materials, designs, repeat length, skills of operator and etc..
  2. All specifications are subject to change without notice. Please check with your supplier for exact offer.
  3. Specification and features vary by models, and all images might be illustrative for reference only.
*The above specification is for reference only,  the operational speed and width depends on printing length, operator skill, design, job, and many other factors.
*The specification, picture, functions of machine might change without notice. Kindly check with your distributor or ORTHOTEC
